Height Adjustable Hand Winch Gantry Crane with 0.5~5Ton Capacity and Remote Control

Place of Origin : Henan, China

Brand Name : HUAGONG

Price : 1000~15000 USD/SET

Model Number : MH

Certification : CE

MOQ : 1 SET

Payment Terms : T/T

Supply Ability : 1SET 15 DAYS

Delivery Time : 15 Wrok Days

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Core Components : Engine, Bearing, Gearbox, Motor

Application : Outdoor

Rated Loading Capacity : 0.5~5Ton

Max. Lifting Height : 2.6~4m

Warranty : 1 Year

Weight (KG) : 1200 kg

Power supply : Customer request

Control method : Remote Controller and ground control

Color : Clients' Requirments

Lifting speed : Variable Speed (standard)

Crane feature : High Efficiency

Lifting mechanism : Wire Rope Electric Hoist

Material : Structural Steel

Contact Now

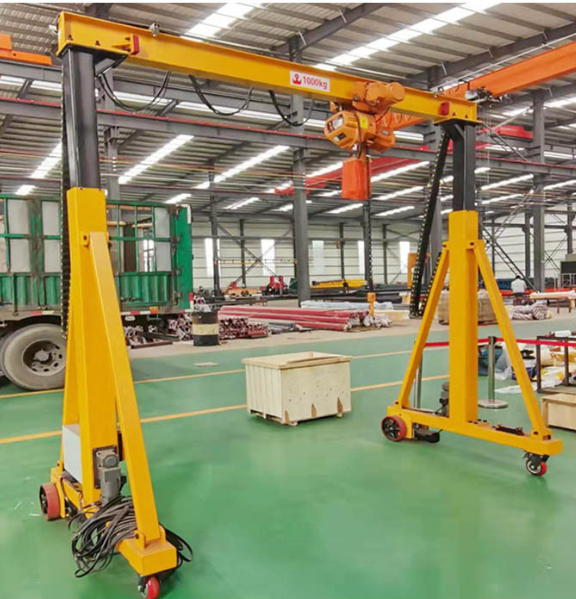

Hand Winch Height Adjustable Gantry Crane - 0.5t to 5ton Capacity
Professional-grade height adjustable gantry cranes with hand winch operation, available in multiple capacity options from 0.5 ton to 5 tons for versatile industrial lifting applications.

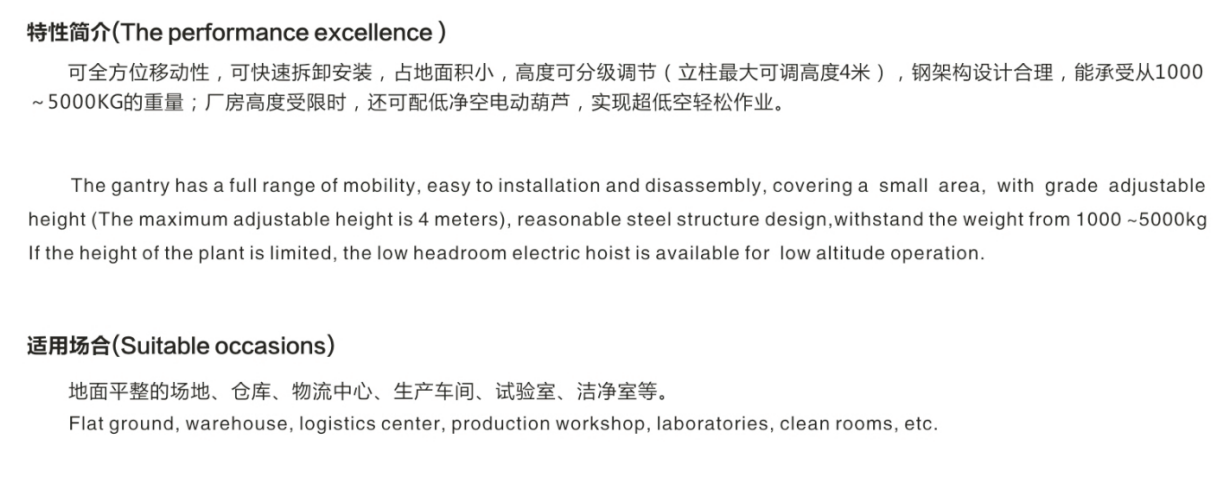

The performance excellence
The gantry has a fullrange of mobility, easy to installation and disassembly, covering a small area, with grade adjustableheight (The maximum adjustable height is 4 meters), reasonable steel structure design,withstand the weight from 1000 -500okgIf the height of the plant is limited, the low headroom electric hoist is available for low altitude operation.
Suitable occasions
Flat ground, warehouse, logistics center, production workshop, laboratories, clean rooms, etc.

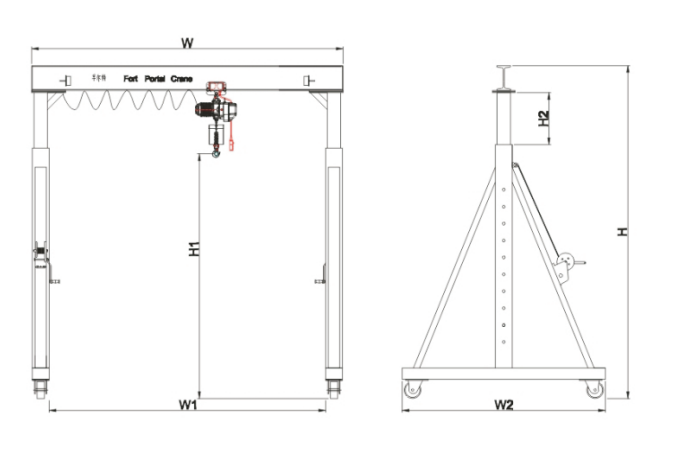

Parameters
Type Capacity Equipment Width(mm) Height(mm) Lift Height(mm) AdjustableHeight Range(mm) ConfigurationandSize Description
W W1 W2 H H1 H2

Manual swivel casters with brake; electric drive optional; body dimensions and adjustable height range can be increased or widened according to actual requirements.
FT2-0.5 0.5T 4000 3800 1500 2600-4000 1900-3300 1400
FT2-01 1T 4000 3760 1500 2600-4000 1800-3200 1400
FT2-02 2T 4000 3700 1500 2600-4000 1650-3050 1400
FT2-03 3T 4000 3700 1500 2600-4000 1500-2900 1400
FT2-05 5T 4000 3640 1500 2600-4000 1300-2700 1400
Height Adjustable Hand Winch Gantry Crane with 0.5~5Ton Capacity and Remote Control
Height Adjustable Hand Winch Gantry Crane with 0.5~5Ton Capacity and Remote Control
Height Adjustable Hand Winch Gantry Crane with 0.5~5Ton Capacity and Remote Control
Height Adjustable Hand Winch Gantry Crane with 0.5~5Ton Capacity and Remote Control
Height Adjustable Hand Winch Gantry Crane with 0.5~5Ton Capacity and Remote Control
